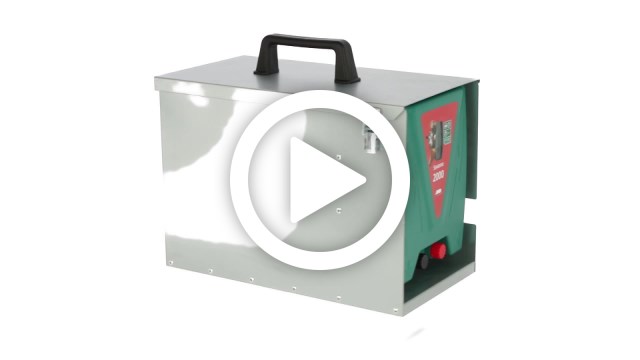

Savanne 2000

Includes metal box

12 V device with high output power for normal fencing systems, even with heavier vegetative growth

Fence control LED and separate battery warning indicator

recommended solar module: item number 375251 (25 Watt), connection directly to the 12-Volt battery, mounting e.g. on the metal box

Items

Ref. no.	PU		Pallet
372752	1	1	27 PAL	27 PAL

Accessories

Ref. no.	Description	Width	Depth	Height	PU
375251	Solar Panel incl. charge controller	37.5 cm	2 cm	56 cm	1

low energy consumption thanks to energy-saving mode
with visual fence voltage control
with On/Off switch, high/low
weather-resistant and sturdy housing
with 12 Volt full discharge protection
Internal dimensions approx. 295 x 200 x 250 mm, suitable for batteries with max. 100 Ah (battery not included in scope of supply)

Model	Ref. no.	Stored Energy		max. discharge energy		max. voltage		Voltage in Open Circuit		Voltage at 500 Ohms		theoretical fence length as per VDE		max. fence length without vegetation		max. fence length with medium vegetation		max. fence length with high vegetation		Approx. Number of Electrifiable Nets		Qty 1 m earth posts		Power Consumption
Savanne 2000	372752	3.2 J	3.2 J	1.9 J	1.9 J	9600 V	9600 V	8300 V	8300 V	6100 V	6100 V	60 km	60 km	20 km	20 km	5 km	5 km	2 km	2 km	7	7	2	2	75 mA - 193 mA	75 mA - 193 mA
