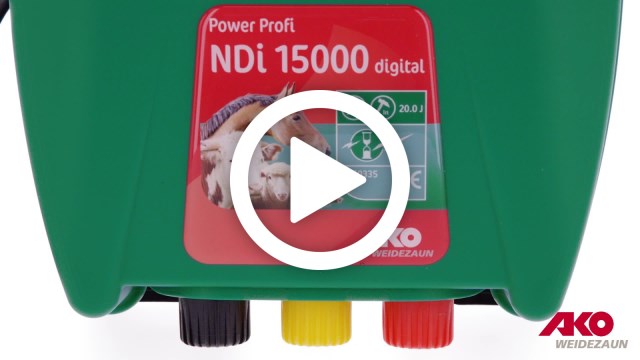

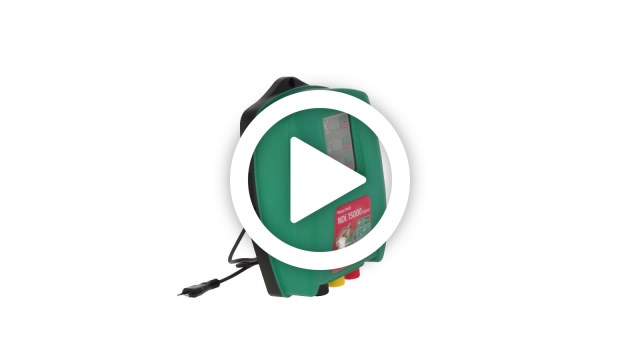

Power Profi NDi 15000 digital

ultra high-capacity power supply unit with intelligent power adjustment that uses the maximum permissible limit values
for extremely long fences, heavy vegetation and very robust animals
our all-round device for more demanding applications - ideal for horses, cattle, sheep, goats, and for deterring wild boars and wolves

Digital Display Readout for Fence and Earth Voltage and Energy Consumption

Ref. no.	PU		Pallet
372815	1	1	81 PAL	81 PAL

The smart 230 V power energiser line from AKO – extremely effective, for very robust animals and for very long fences even with vegetation!
AKO NDi units automatically adapt to the fence status, ensuring the highest security and making your work easier by damaging vegetation growth to some degree
Delayed shock strength adjustment makes touching the fence safer for people and animals
the fence is constantly monitored by an alarm function, which triggers an alarm and slows the pulse sequence if the fence is touched for an extended period of time
permanently illuminated, clearly visible digital displays and additional bright LED displays allow for easy visual monitoring of the current fence and device status at a glance
robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics
microprocessor controlled
integrated hanging device for wall mounting
corresponds to applicable EU safety standards

Model
NDi 15000 digital
Ref. no.	372815
Stored Energy	20 J
	20 J
max. discharge energy	14.5 J
	14.5 J
min. discharge energy	0.6 J
	0.6 J
max. voltage	10200 V
	10200 V
Voltage in Open Circuit	9600 V
	9600 V
Voltage at 500 Ohms	7000 V
	7000 V
theoretical fence length as per VDE	350 km
	350 km
max. fence length without vegetation	100 km
	100 km
max. fence length with medium vegetation	22 km
	22 km
max. fence length with high vegetation	12 km
	12 km
Approx. Number of Electrifiable Nets	40
	40
Qty 1 m earth posts	5
	5
Qty 2 m earth posts	3
	3
Power Consumption	18 W
	18 W

Model	NDi 15000 digital
Ref. no.	372815
Stored Energy	20 J
	20 J
max. discharge energy	14.5 J
	14.5 J
min. discharge energy	0.6 J
	0.6 J
max. voltage	10200 V
	10200 V
Voltage in Open Circuit	9600 V
	9600 V
Voltage at 500 Ohms	7000 V
	7000 V
theoretical fence length as per VDE	350 km
	350 km
max. fence length without vegetation	100 km
	100 km
max. fence length with medium vegetation	22 km
	22 km
max. fence length with high vegetation	12 km
	12 km
Approx. Number of Electrifiable Nets	40
	40
Qty 1 m earth posts	5
	5
Qty 2 m earth posts	3
	3
Power Consumption	18 W
	18 W
