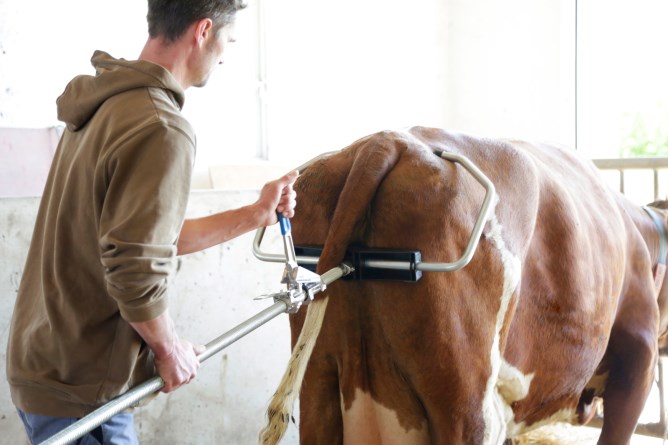

HK Calf Puller with Mechanism 2020

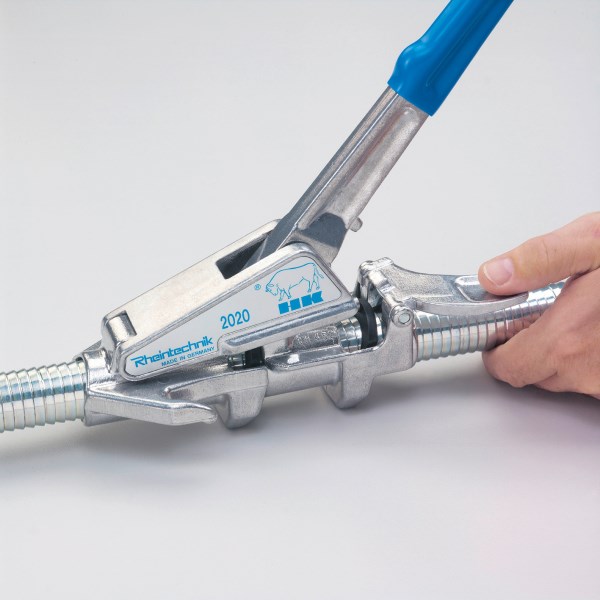

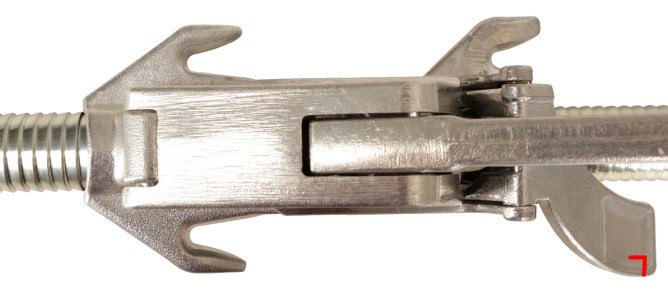

Benefits of the Mechanism 2020

  • low weight, as the ratchet is made entirely of aluminium

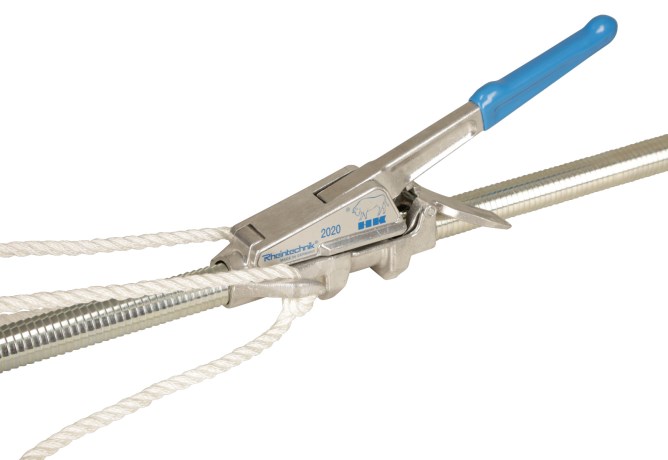

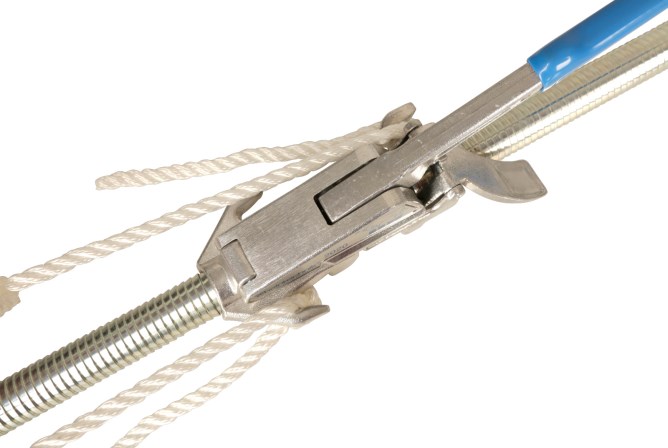

  • with 3 hooks for the calving ropes enabling both alternate and equal tension

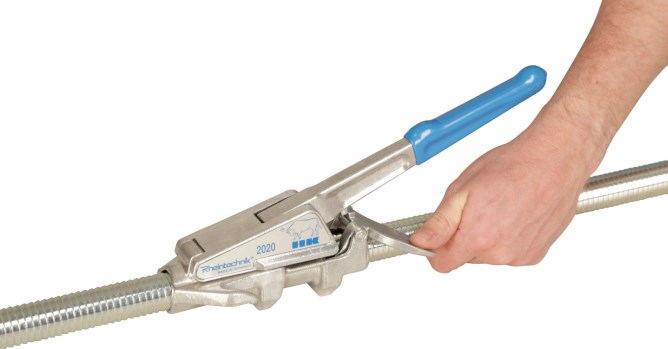

  • super easy to use quick release, even under load
  • the mechanism can be moved 360° around the tube in all models, providing unlimited flexibility
  • Material: Steel
  • 3-year warranty
Items
Ref. no.DescriptionLengthPUPallet

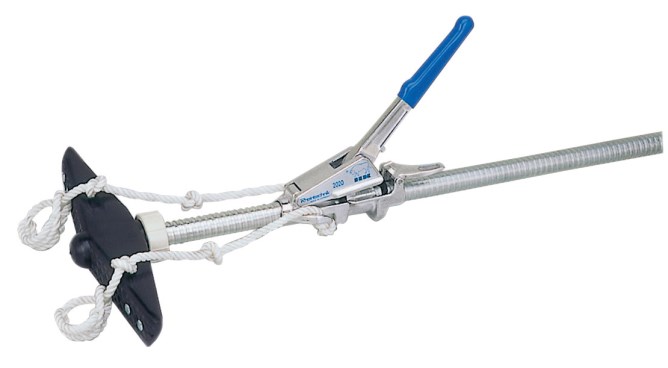

1012with plastic attachment support180 cm150 PAL
10121with plastic attachment support and lateral angled clamps180 cm1/150 PAL

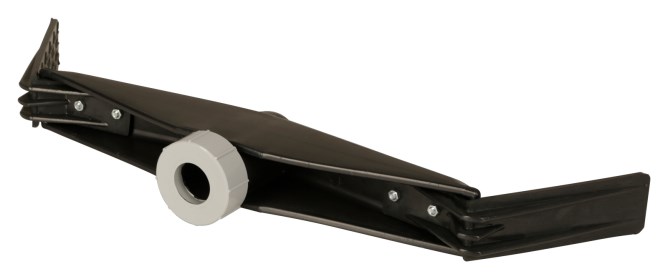

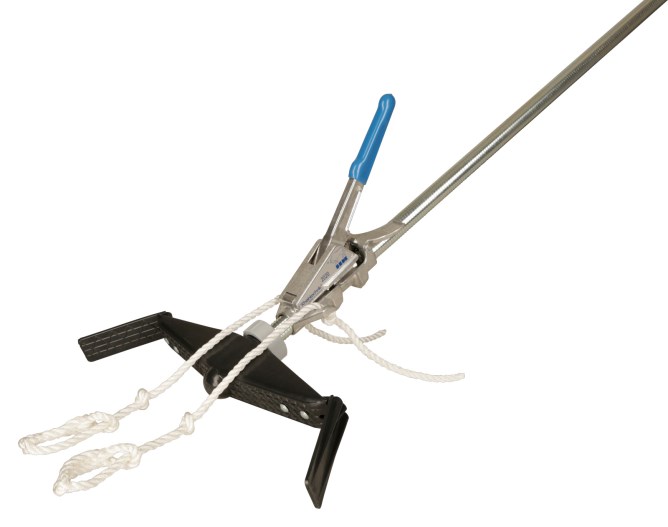

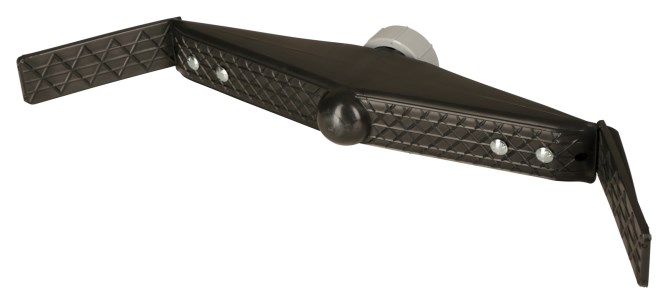

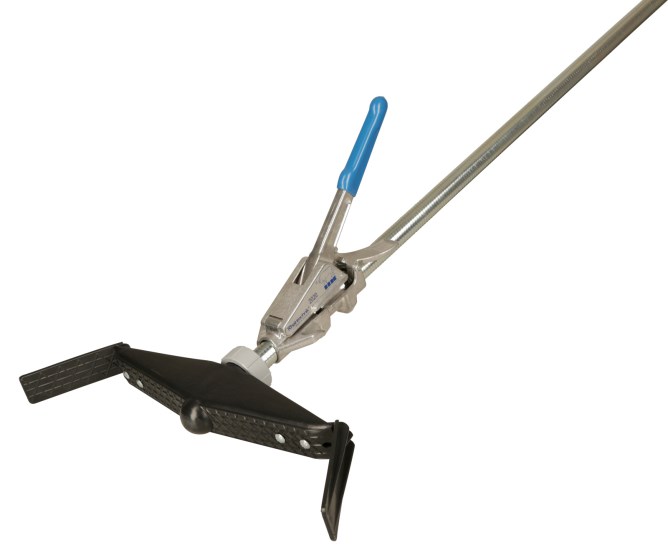

10126with large plastic head and adjustable side clamp180 cm130 PAL

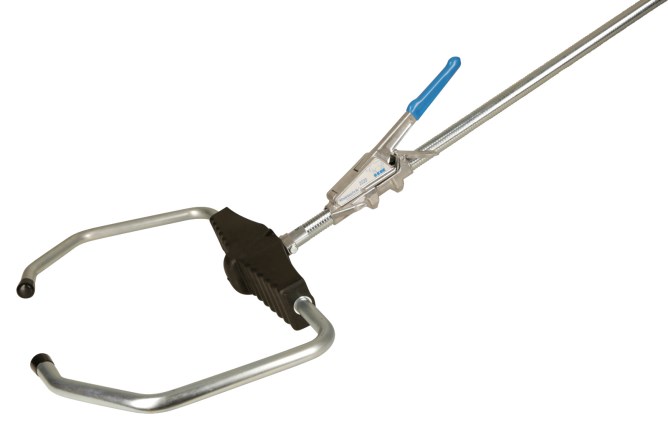

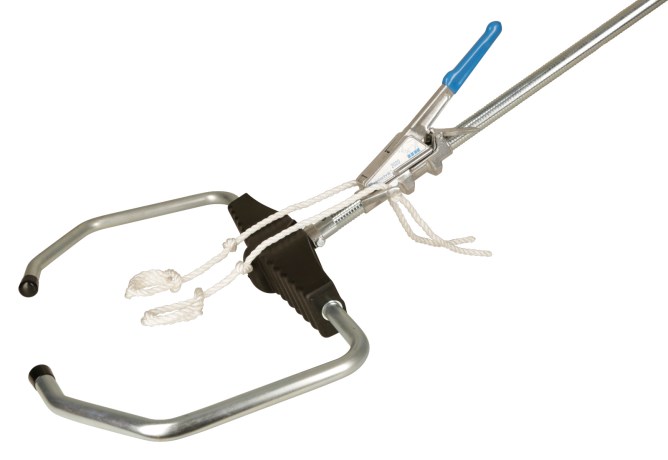

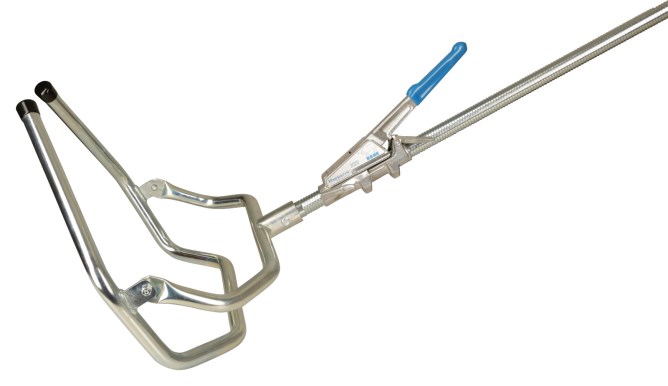

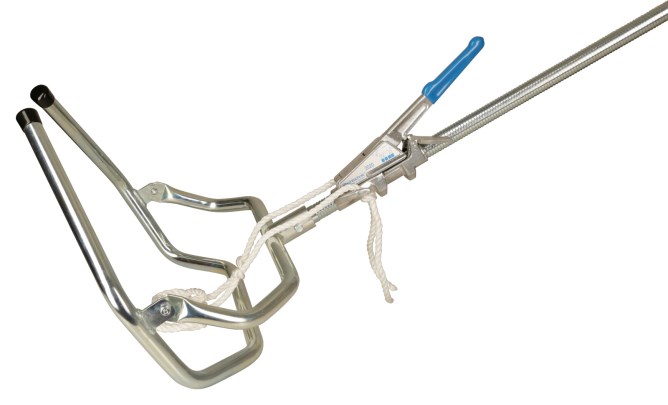

10130with HK Flexi Frames180 cm150 PAL
10131with HK Flexi Frames180 cm116 PAL
Accessories
Ref. no.DescriptionMaterialLengthsuitable forPU
106907Threaded Piece for Attaching the ExtensionSteel 1069081
106908Extension for HK Calf PullersSteel30 cm 1

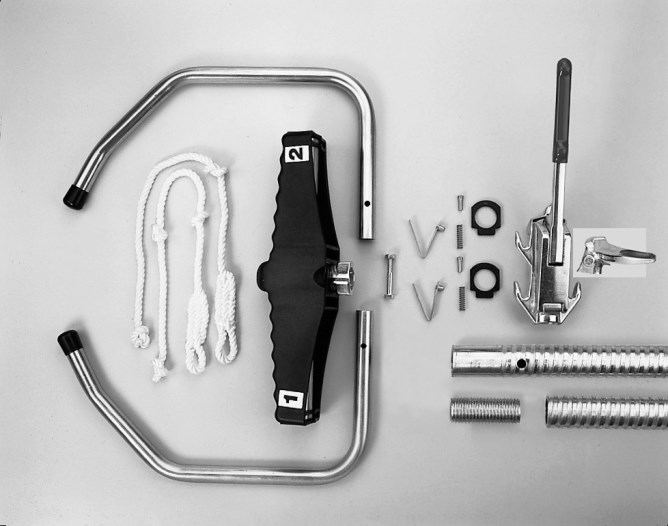

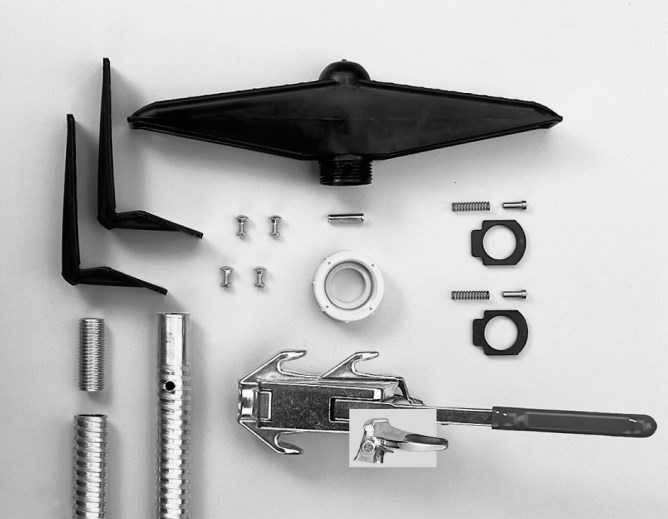

Preview imageItem. No.Description101210121101261013010131
Small head with bolt, nut106418Small head with bolt, nutxx
plastic support, large,106818plastic support, large,  x
HK-FLEXI frame106820HK-FLEXI frame   x
HK-FLEXI frame106821HK-FLEXI frame    x
Interm. part thread. pc for106907Interm. part thread. pc forxxxxx
lengthening ca. 30 cm106908lengthening ca. 30 cmxxxxx
 106408Plastic cap for the lowerxxxxx
 106410Ratchet mechanism 2020 -xxxxx
 106414bolt and spring (1 each)xxxxx
 106416Plastic cover for the handlexxxxx
Small plastic head,106417Small plastic head,xx
 106419Grey union nut, screwed, forxx
 106420Bolt to assemble the smallxx
 106421Set angled pieces -complete- x
 106422Set screws M 5x16 and nuts x
 106612Set of locking plates,xxxxx
 106823Supporting-holding bow  x
 106825Plastic cap for the  xxx
Intermediate piece,aluminium106826Intermediate piece,aluminium  x
 106827Screw M 8x55 and nut M 8 for  x
Locking pin, 6x6 millimeter106828Locking pin, 6x6 millimeter  x
 106903lower part tubexxxxx
 106904Calf puller upper shaftxxxxx
 106905tube complete HK calf puller,xxxxx
Pair of ropes 8mm for103Pair of ropes 8mm forxxxxx
 106829PVC Cap K 30 for Flexi Frame    x
 106830Screw M8x50 a. nut   xx
Replacement spring for116Replacement spring for  x
