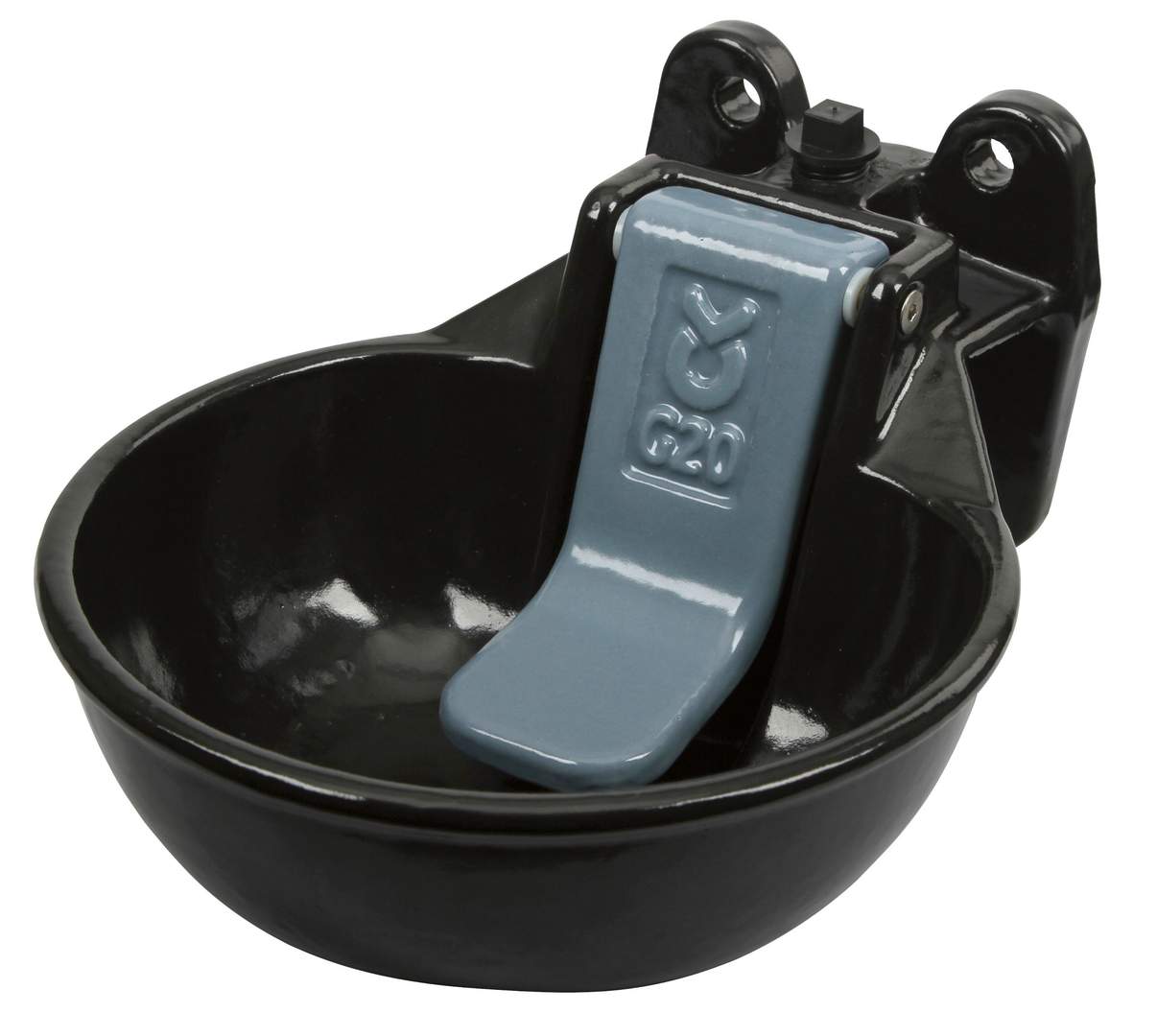

Drinking Bowls G20

solid, enamelled grey cast body with particularly large, deep bowl
Bowl diameter: 225 mm

for wall and pipe mounting

enamelled

Items

Ref. no.	Colour	Water connection	Capacity	PU		Pallet
222020	black	G 1/2"	2 L	1	1	55 PAL	55 PAL

Accessories

Ref. no.	Description	Colour	Material	Connection	suitable for	Frame height	PU
221970	Guard Size 1		hot-dip galvanised metal			20 cm	1/4
223426	Valve high-pressure		brass				1/20/200
22365	Pipe Mounting Brackets, in pairs		metal				1/25
22209	Sealing plug	black	Plastic	1/2"	221500, 221800, 222000, 222500, 222005, 222010		1/200/1000

Technical data	Dimensions (W x D x H)	Connection option	Water flow rate	Flow rate	Weight
222020	23,5 cm x 29 cm x 15,8 cm	from above or below	3-way adjustable	7.5 L/min - 11 l/min (3 bar)	7.4 kg

Preview image	Item. No.	Description	222020
	223426	High-pressure valve replacem.	x
	222023	Cast body for G20 Water Bowls	x
	222024	Tongue for G20 Water Bowls	x
	222025	Sleeve Nut Stainless Steel for	x
	222026	Stnlss Steel Axle f G20 + N20	x
	222029	Slide bearings 8x11x13	x
	6312	Prot. plug for hole Ø6mm	x
	22209	Plastic blind plug 1/2" for 221500,	x
