Item. No. 14611

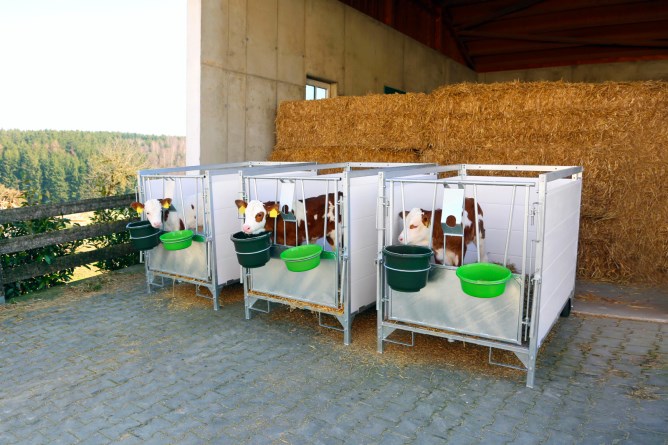

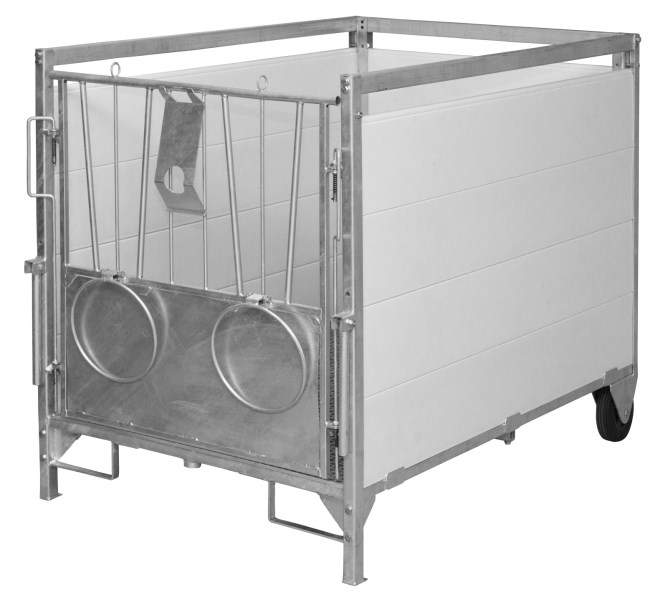

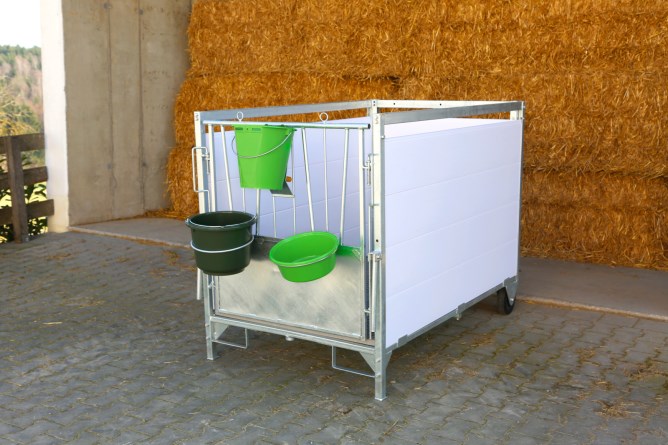

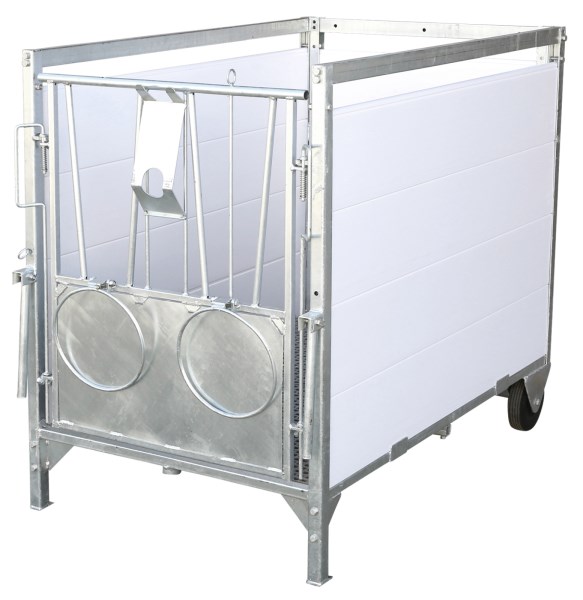

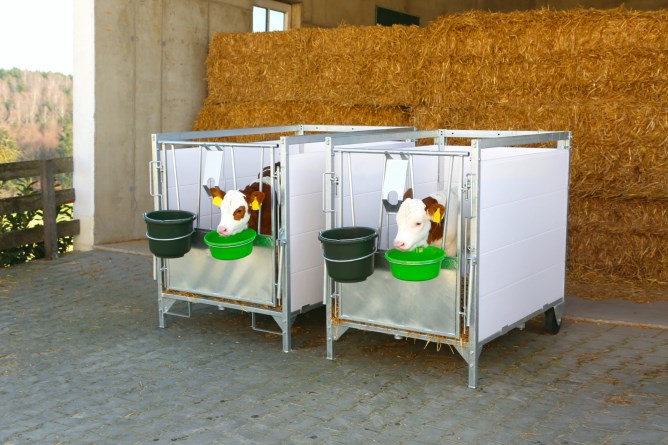

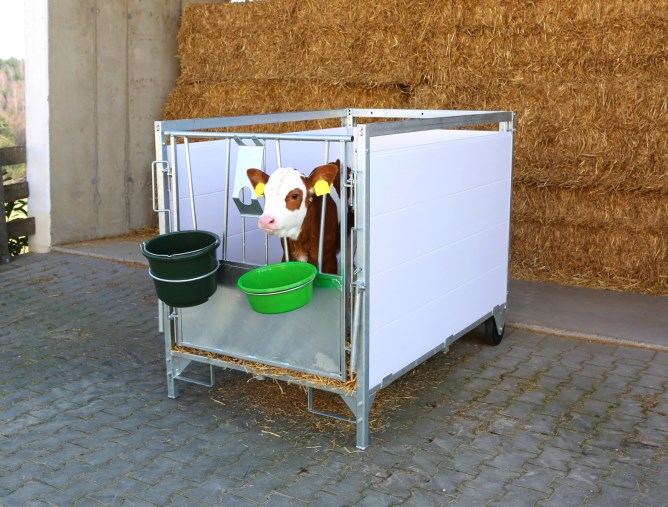

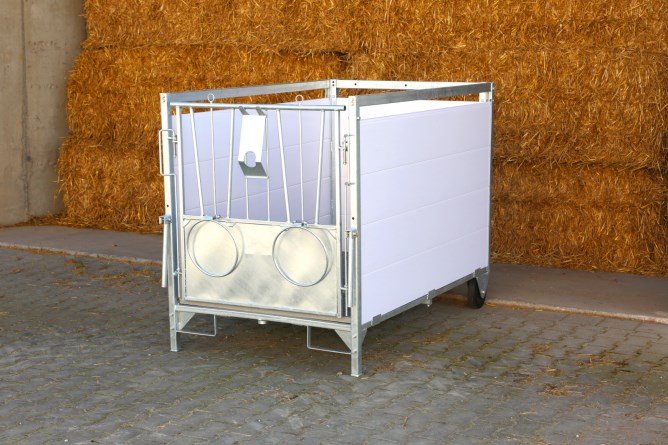

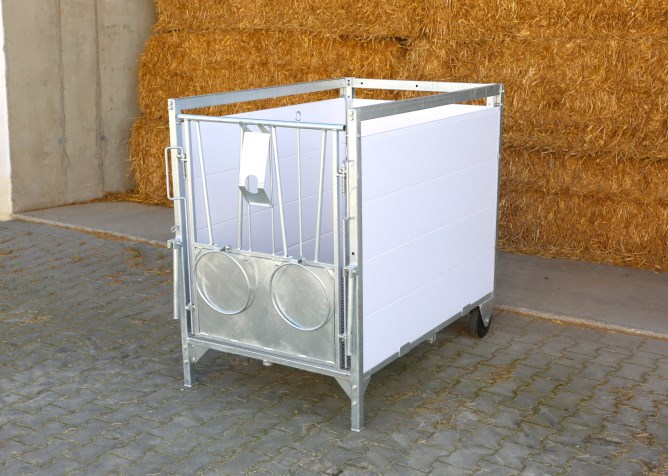

Calf box

stable,hot dip-galvanised metal frame

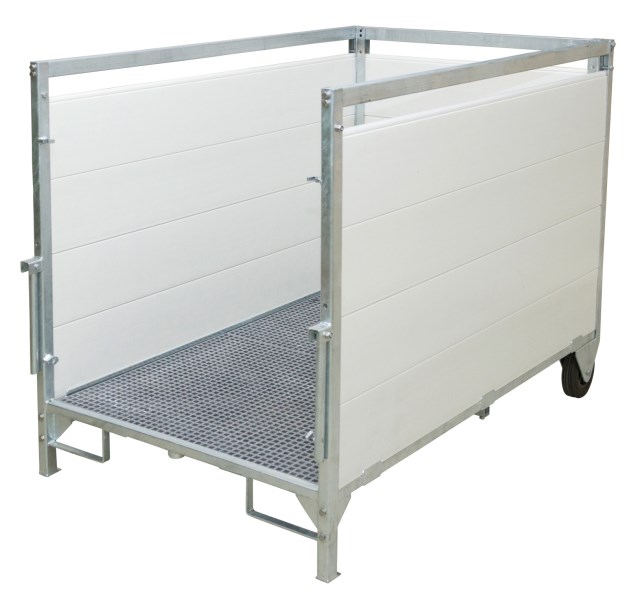

GRP base grille (two-part) offering excellent grip and anti-slip properties

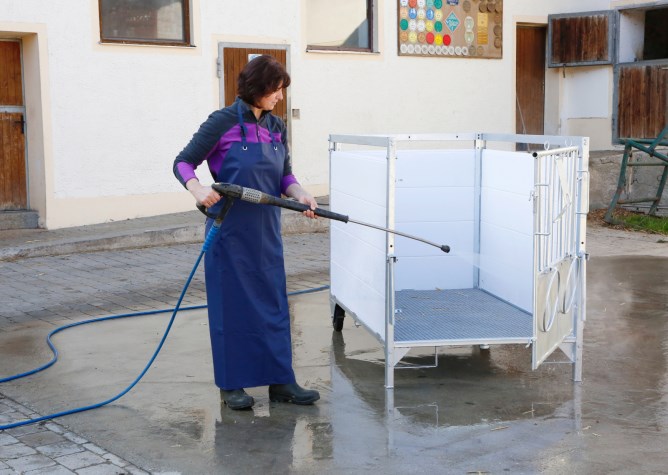

easy-to-clean side walls made from PVC panels with smooth surface

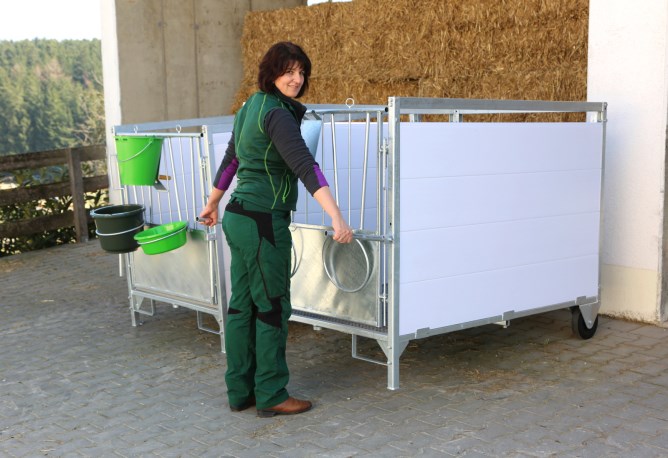

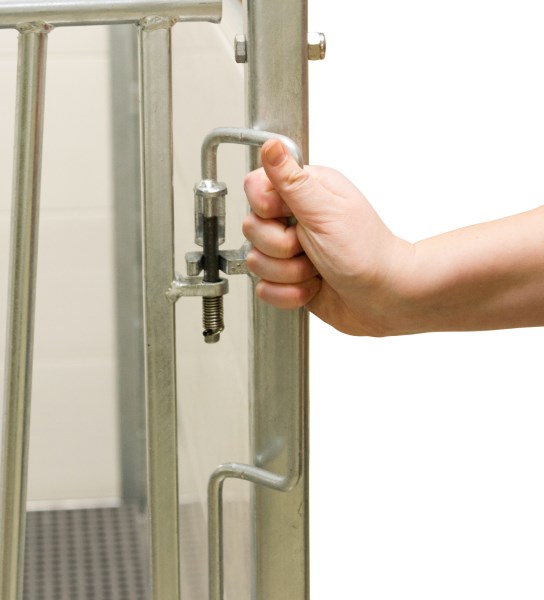

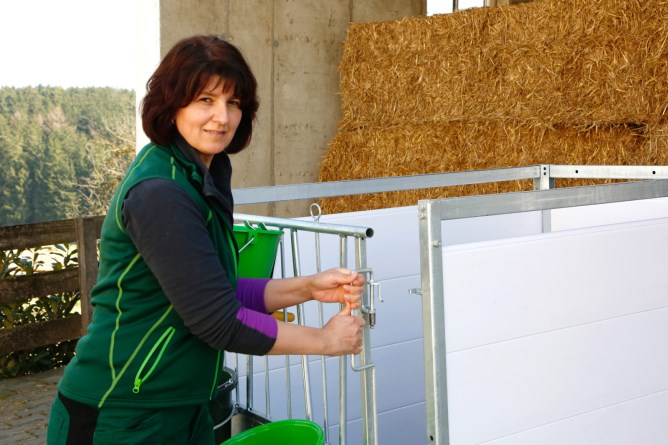

revolving door which opens in both directions

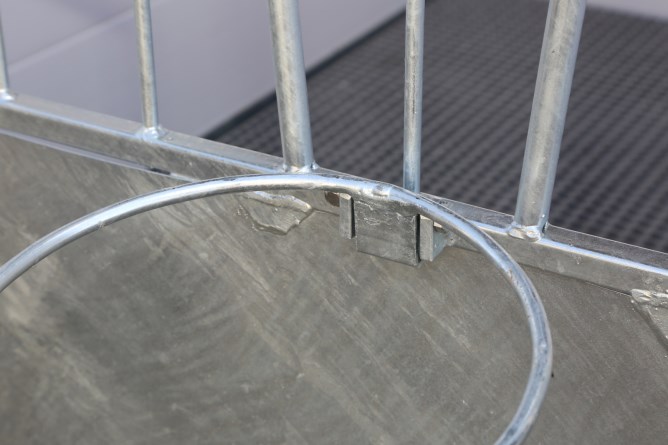

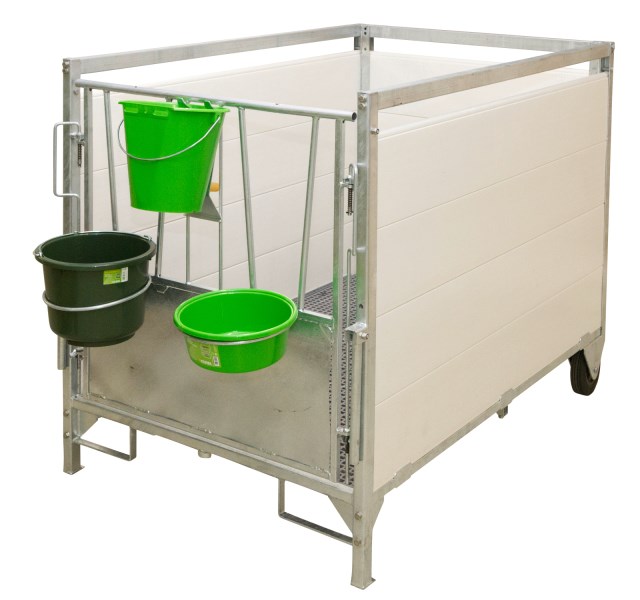

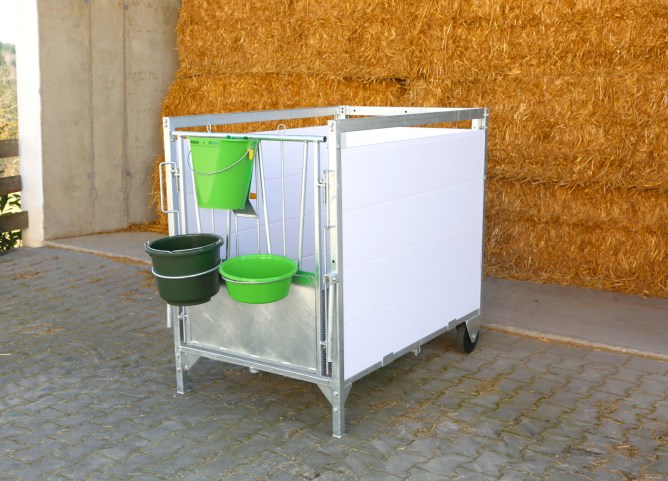

includes a watering bucket mounting bracket and two foldable bucket brackets

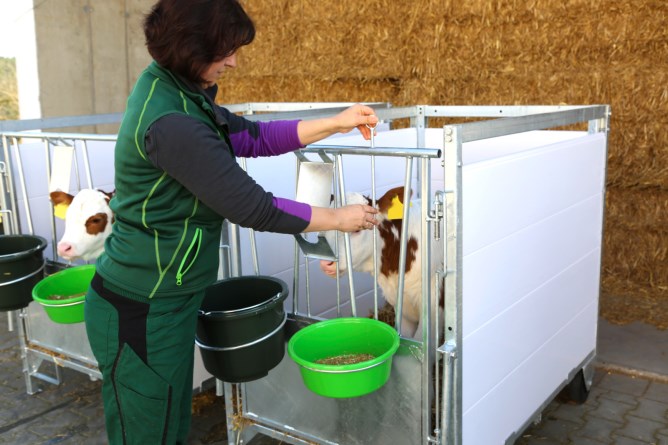

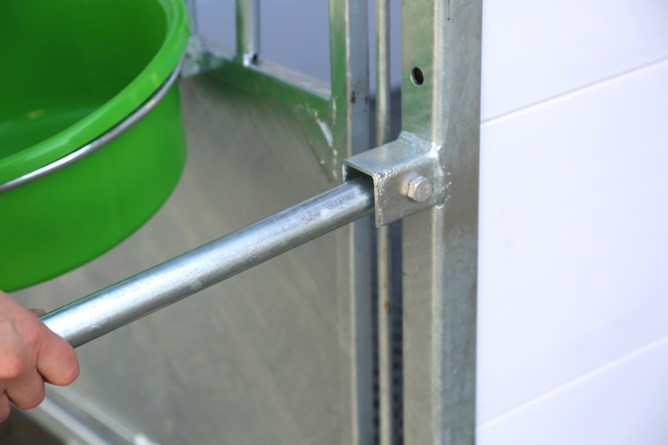

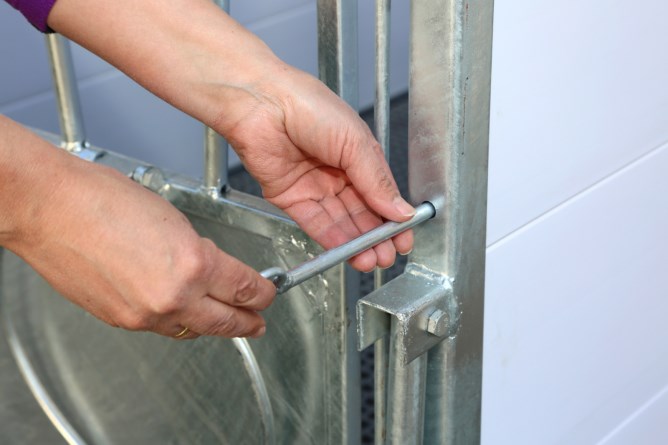

Feeding places can be individually blocked

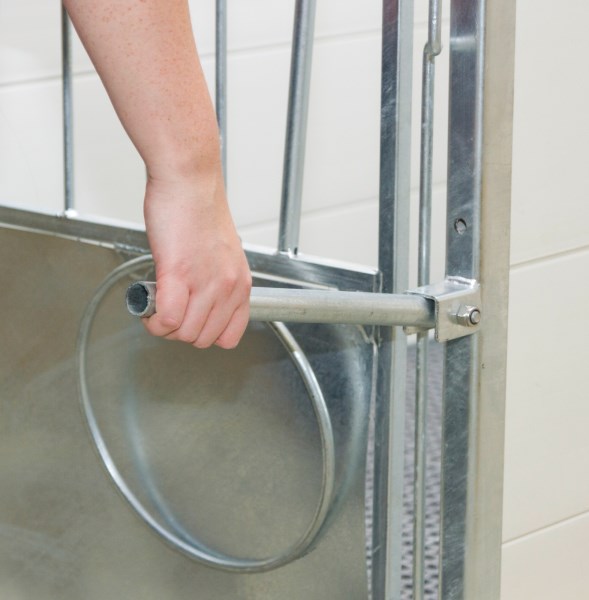

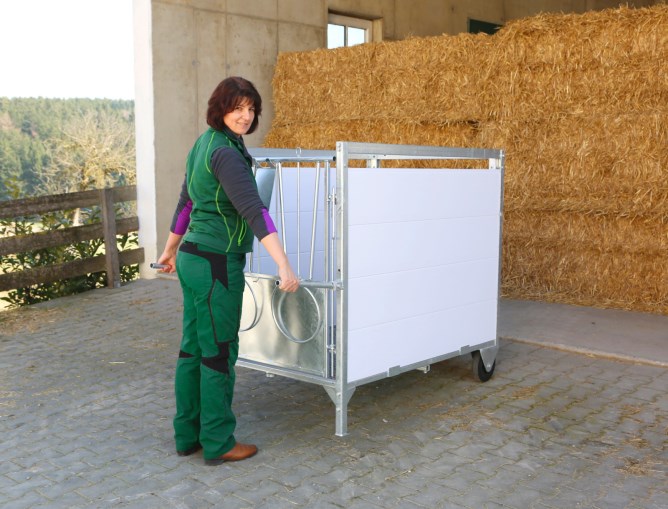

folding handle on the front make moving it exceptionally easy

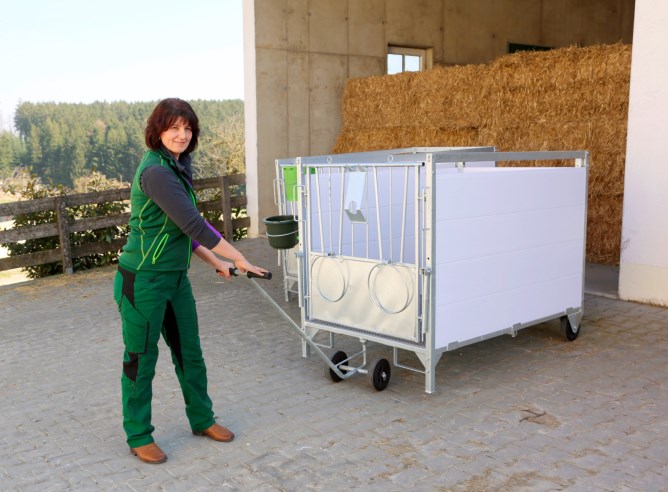

transport device optionally available

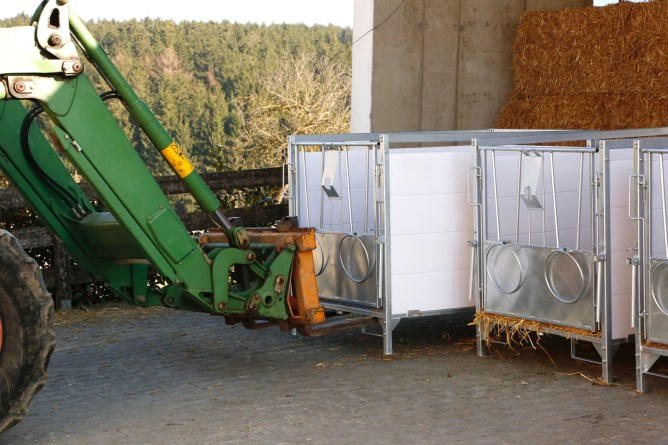

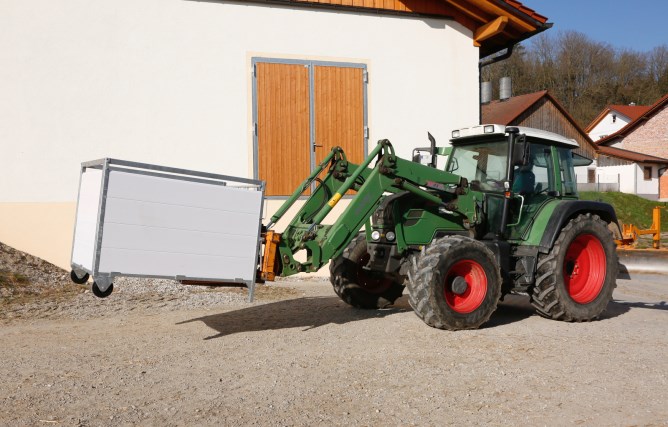

Can be transported with pallet forks
roof optionally available
Bucket not included

Local animal protection regulations must be observed.

Items

Ref. no.	Description	PU		Pallet
14610	Calf box small	1	1	6 PAL	6 PAL
14611	Calf box large	1	1	6 PAL	6 PAL

Accessories

Ref. no.	Description	Material	Length	Width	Height	suitable for	Weight	PU		Palette
14612	Roof for Calf Box small	PVC	153 cm	98 cm	3.5 cm	14610	22 kg	1	24 PAL
14605-48	Supplementary Set, Social Contact Window	galvanised metal	40 cm	11.5 cm	4.5 cm	14610, 14611		1	650 PAL		NEW
14613	Roof for Calf Box large and Premium	PVC	180 cm	120 cm	3.5 cm	14611, 14616, 14604	25 kg	1	25 PAL
14609	Transport Device for Calf Box	galvanised metal / Rubber	33 cm	30 cm	140 cm			1	50 PAL
14610-1	GRP Floor Trivet for Calf Box small (two part)	GFK	130 cm	85 cm	2.5 cm	14610	15.6 kg	1
14611-1	GRP Floor Trivet for Calf Box large (two part)	GFK	160 cm	100 cm	2.5 cm	14611, 14616, 14604	22 kg	1
14611-2	PVC panel calf box for side wall	PVC	165 cm	3 cm	25 cm			1
14611-3	PVC panel calf box for rear wall	PVC	97 cm	3 cm	25 cm			1

Technical data	External dimensions	Interior dimensions	Weight
14610	173 cm x 93 cm x 131 cm	130 x 85 x 106 cm	121 kg
14611	201 cm x 107 cm x 131 cm	160 x 100 x 106 cm	160 kg

Preview image	Item. No.	Description	14610
	14605-12	Handle for 14610	x
	14605-13	Locking Rod	x
	14605-14	Bucket Ring for Calf Box	x

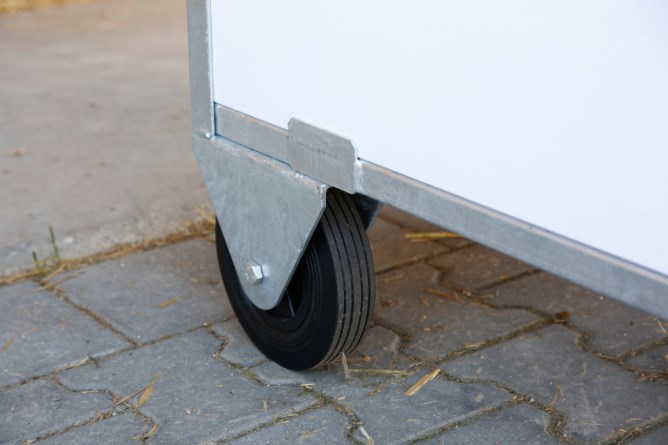

	14605-16	Wheelset	x
	14605-18	Screw Set D	x
	14605-19	Front Frame	x
	14605-21	Horizontal Brace for 14610	x
	14605-22	Frame Back	x
	14605-23	Door for 14610	x
	14605-29	Screw Set Package A	x
	14610-1	GRP Grille for Calf Box Small	x
	14611-2	Panel for Calf Box Mod. 2017	x
	14611-3	Panel for Calf Box Mod. 2017	x
	14605-47	Spare Locking Rod right,	x

Instruction manual
