Automatic Control for Chicken Door Basic

The automatic controller is suitable for all conventional sliders and flaps for chicken coops. The opening and closing is controlled dependent on daylight, by means of a light sensor.

The chickens are thus protected from nocturnal predators, and are able to leave the coop as soon as the sun rises.

  • for the automatic daylight-dependent opening and closing of chicken doors
  • reliable protection of poultry against nocturnal predators
  • no unintended opening caused by lightning flashes or short-term brightness, thanks to time-delayed reaction by light sensor
  • automatic stop function if there is resistance; closing process then continues
  • light sensor with 1 m cable allows indoor installation of controller
  • manual control possible via separately available button (70565)
  • motor switches off automatically if overloaded
  • Battery-operated: 4 x AA Mignon (not included)
  • for chicken flaps/doors/slides from 0.5 kg to 2.5 kg
Items
Ref. no.PU
705401/101/10

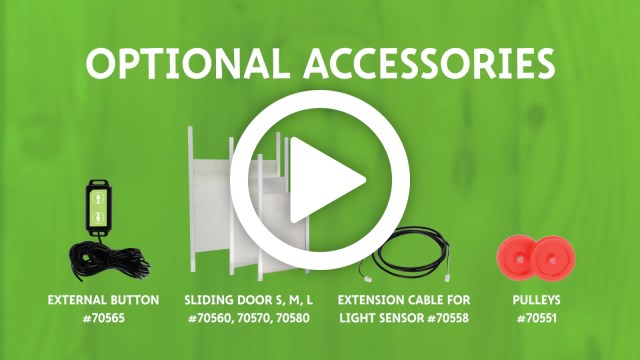

Accessories
Ref. no.DescriptionSizeMaterialLengthWidthHeightMOQPieces / unitPU
70551Pulleys Plastic   1 pouch4 / pouch1
70552Replacement cord for Chicken Door       1
70554External light sensor       1/50
70560Sliding Door incl. Guide RailsSAluminium 220 mm330 mm  1/10
70570Sliding Door incl. Guide RailsMAluminium 300 mm400 mm  1/10
70558Extension Cable for Light Sensor  4 m    1
70580Sliding Door incl. Guide RailsLAluminium 430 mm400 mm  1/10


Daylight-dependent control: The light sensor included in the delivery automatically adjusts the opening and closing times of the chicken flap to the daylight. Once darkness falls, the hens are thus protected from nocturnal predators, and are able to leave the coop early in the morning.

Integrated safety functions: The light sensor’s time-delayed reaction to signals prevents unintended opening during lightning flashes, etc. If there is resistance because of an animal in the flap area, the closing process is stopped automatically, and then continued. If there is an overload, the motor switches off automatically.

Practical and flexible to use: The automatic chicken door functions without a power connection. The controller is operated with batteries (4 x AA Mignon, not included in delivery). The light sensor has a cable length of 1 m, and so the controller can be installed in the protection of the interior.

Suitable for all conventional chicken doors: The controller is suitable for all conventional chicken doors and sliders used in poultry coops. Doors with a weight between 0.5 kg and 2.5 kg can be installed.

Manual control possible: By means of a separately available optional button (item number 70565), manual control is also possible for opening or closing the door by hand at any time.

Technical data
70540

  • basic control with integrated motor and cable pull, light sensor, mounting screws, operating instructions
