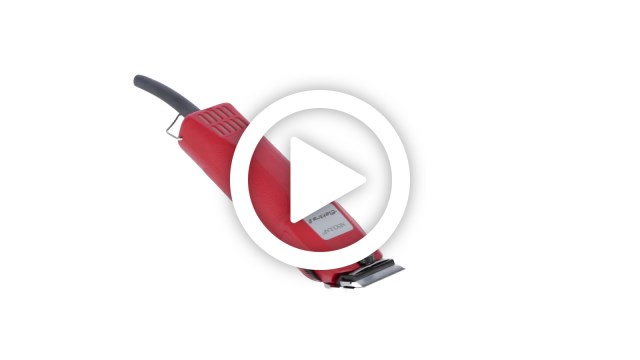

Aesculap Hair Clipper Elektra II

Powerful and quiet, reliable and sturdy, developed for daily use – the machine for professionals.

virtually vibration-free operation – powerful ball-bearing motor
consistently good cutting results – wear-resistant metal rocker arm
suitable for continuous operation – well-tuned ventilation system and easy-clean air filter protect against overheating and ensure a long life
low-fatigue working thanks to the slim, ergonomically designed housing made from unbreakable specialist plastic
comfortable to use – switch at the front of the machine for comfortable one-handed operation
Supplied without blade set

Ref. no.	Colour	PU		Pallet
GH204	red	1/8	1/8	72 PAL	72 PAL

Technical data	Blade set system	Drive	Drive	Stroke rate	Sound pressure level	Cable length	Protection class
GH204	Aesculap Favorita	Universal	Worm wheel	approx. 2300 strokes/min	70 dB	5 m	II

Item. No.	Description	GH204
GT604	Clipper oil 90ml	x
GT605	Aesculap special grease 20ml	x
GH204337	Adhesive label	x
GT104212	Fan impeller	x
GT104213	Strain relief device	x
GT104217	Spring for lever 23	x
GT104218	Insulating plate	x
GT104225	Felt disk for top housing	x
GT104227	Shackle	x
GT104244	Slide ring for excenter wheel	x
GT104249	Rubber protection for switch	x
GT104314	Brush with spring	x
GT104315	Dovetail steelplate	x
GT104316	Lever complete	x
GT104319	Baeringbrush	x
GT104320	Baeringbrush	x
GT104415	Dovetail compact	x
GT104614	Carbon brush	x
GT104801	Motor housing bottom	x
GT104802	Motor housing top	x
GT104803	Air filter	x
GT104808	Oscillating arm of steel	x
GT104817	Field magnet wound, 230V,	x
GT104840	Worm wheel mounted	x
GT104850	Circuit board complete	x
GT104865	Rotor packed	x
GT105326	Protective sleeve	x
GT300224	Oil felt 12x9	x
TA003537	Screw for cable clip	x
TA003544	front bearing for 35104 and	x
TA003820	Locking washer for	x
TA004627	Z. tap screw B2.2x6.5	x
TA004631	Ball bearing rear on anchor	x
TA004637	Disks underneath worm wheel	x
TA004639	Screw for swallow tail	x
TA004663	Cylinder screw for plates,	x
TA004691	Switch	x
TA013499	Torx-screw SN4850, M3x16,	x
TA013520	Mains cable with	x
TA021595	Connector block	x
