Control for LED lighting

https://www.kerbl.com/de/catalog/stall-und-hof/led-beleuchtung/led-steuerung

Why does lighting need to be controlled?
You want to ensure a certain illuminance inside the building. Yet daylight incidence varies greatly throughout the day. Summer days are also generally light and winter days dark. If the lighting is designed to generate the desired brightness in the building at low daylight levels, then it would be too bright at high daylight levels. This would waste energy. Do you want to create a long daylight phase in the stable to positively influence the animals’ fertility and vitality? You certainly don‘t want to turn on the light very early in the morning and turn it off very late at night every day. Kerbl’s lighting control system has the answer: you can use it to switch the artificial barn lighting on or off with time control and depending on the available daylight, or even achieve a constant lighting level through automatic dimming.

This lighting control allows you to switch the artificial lighting on or off, on
a timer and regardless of existing daylight, or even achieve a constant light
level (e.g. min. 200 lux) through automatic dimming. This means it ensures
ideal lighting conditions throughout the day and year while minimising electricity consumption. Comfort for animals and humans!

controls lighting dependent on time and/or daylight
four different lighting circuits (groups) can be independently controlled, two of which with a dimming function
suitable for LED lights with 1...10V interface
standard surface-mount housing for mounting in the equipment room
Dust and moisture protection (IP54)
suitable e.g. for up to 50 150 watt lights (up to 15 lights on the dimmable circuits 1 and 2, and up to 10 lights on circuits 3 and 4)
supplied with a light sensor (can request up to four light sensors)
input for up to four button signals
easy to use with display and three buttons
with extensive documentation and terminal description
IP65

To the LED lighting control

Which control methods are possible?

Lighting control with an outdoor light sensor
A light sensor measures the brightness outside. If the light sensor detects that the daylight is sufficient, then the lighting inside the building is switched off. If the available daylight falls below a set threshold, the lighting is switched on. If dimmable lamps are used, you can also specify that the lighting is switched on in a dimmed state. In parallel, you can also pre-set the on and off times in the morning and in the evening using a timer.

Steuerung der Beleuchtung mit einem Außenlichtsensor

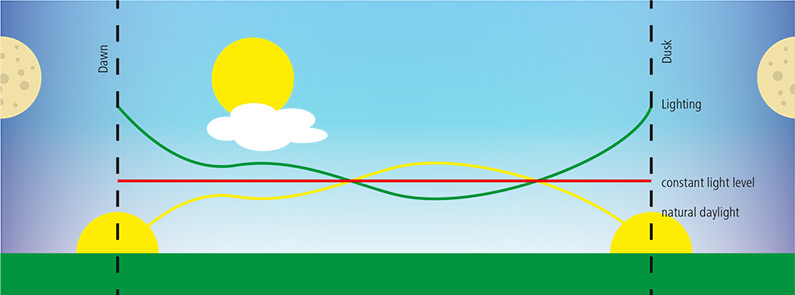

Lighting control with an internal sensor
The optimum light control set-up can also take account of the influence of the building envelope on the lighting levels inside the building. If, for example, all windows are darkened due to strong sunlight, the lighting inside the building should be switched on regardless. In this case, the light sensor is installed inside the building. The lighting intensity can then be controlled not only by switching the lights on and off, but also by automatic dimming of the lamps. This creates a constant light level in the building between the specified switch-on and switch-off times.

Regelung der Beleuchtung mit Innensensor

Lighting control with an internal sensor graphic
